Description

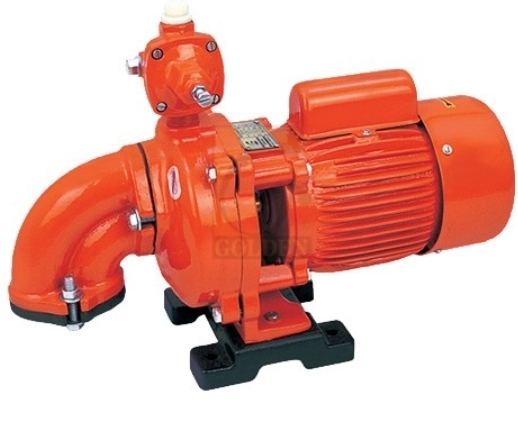

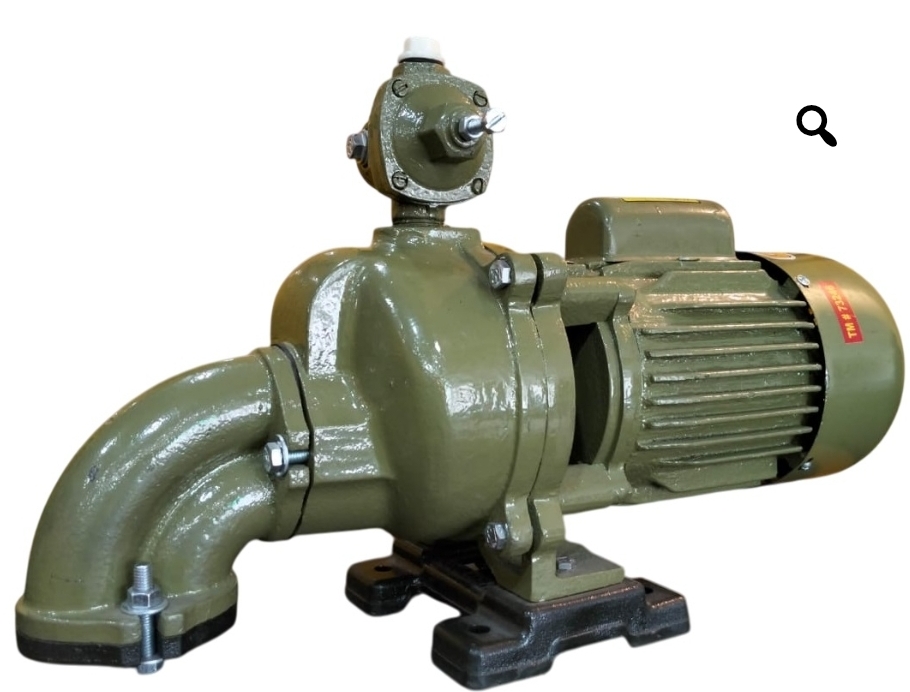

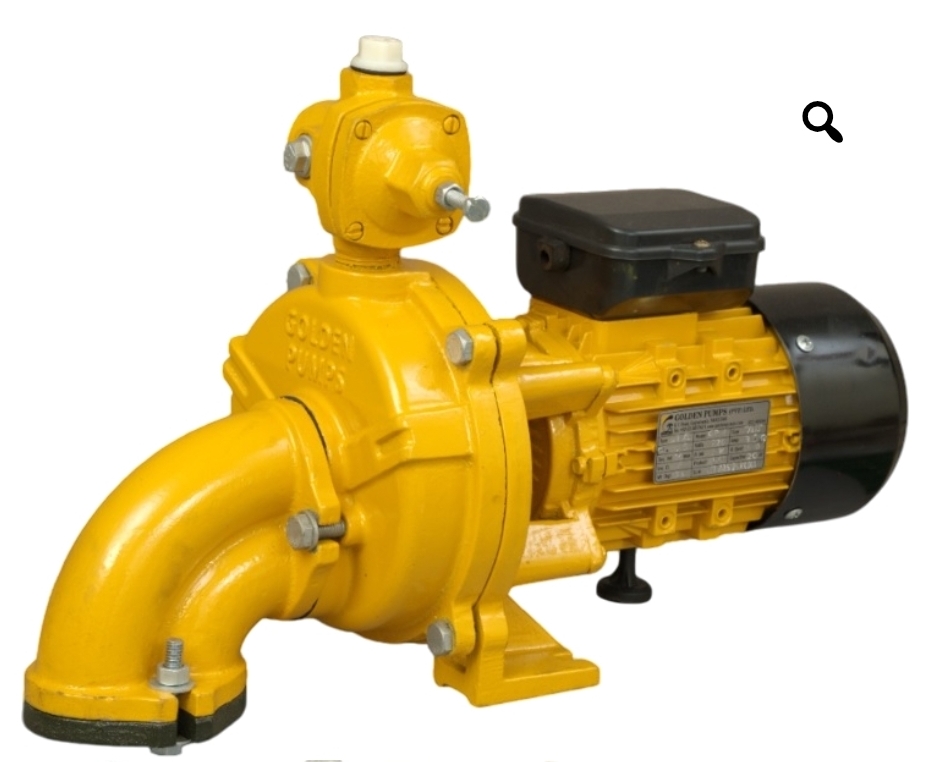

The pump is located on the surface with the injector immersed into the well. The delivery of the fluid generated by the impeller is conveyed to the outlet, the delivery is sucked, by means of a piping through the ‘venturi system’ connected to the suction chamber, which gives the necessary depression to the suction of the fluid where the injector is immersed in.
The fluid sucked by the injector gets mixed in the venturi diffuser with the recycling fluid, coming from the injector body, consequently the fluid pressure increases and it is sucked by the pump through a piping.
Application
Note: A foot-valve must be fitted to the injector also with the valve mounted to the outlet of the pump to ensure a suitable counter pressure during operation. The pipe connecting to the injector and the pumps body must always be fitted up before starting.
Pump Construction
Pump Performance Data
Max. Capacity: 30 1/min
Max. Head: 38 m
Max. Suction: 38 m
Liquid quality requirement is clean and free from solids or abrasive substances and non-aggressive.
Maximum temperature of pumps liquid: -15degCto+60degC
Maximum ambient temperature: 40degC
Maximum working pressure: 3.7 bar
Installation
Upon installation, always prime the pump body first before start up. The pump must be installed with the motor shaft in the horizontal position.
